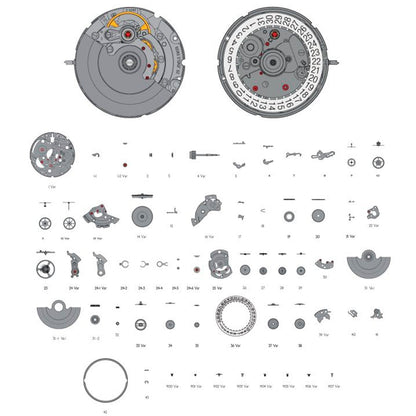

| Part Number |
For ETA Caliber 2824-2 |
| 100 |
Main plate, jewelled |
| 105 |
Barrel bridge |
| 110 |
Train wheel bridge, jewelled |
| 121/3 |
Balance bridge for regulator without pointer, for shock-absorber, stud support ETACHRON
|
| 121/4 |
Balance bridge for regulator without pointer, for shock-absorber, stud support ETACHRON corrector
|
| 125 |
Pallet bridge, jewelled |
| 144 |
Dial fastener |
| 145 |
Dial support |
| 161 |
Centre tube |
| 180/1 |
Movement barrel, complete |
| 182 |
Barrel (drum and cover) |
| 195 |
Barrel arbor |

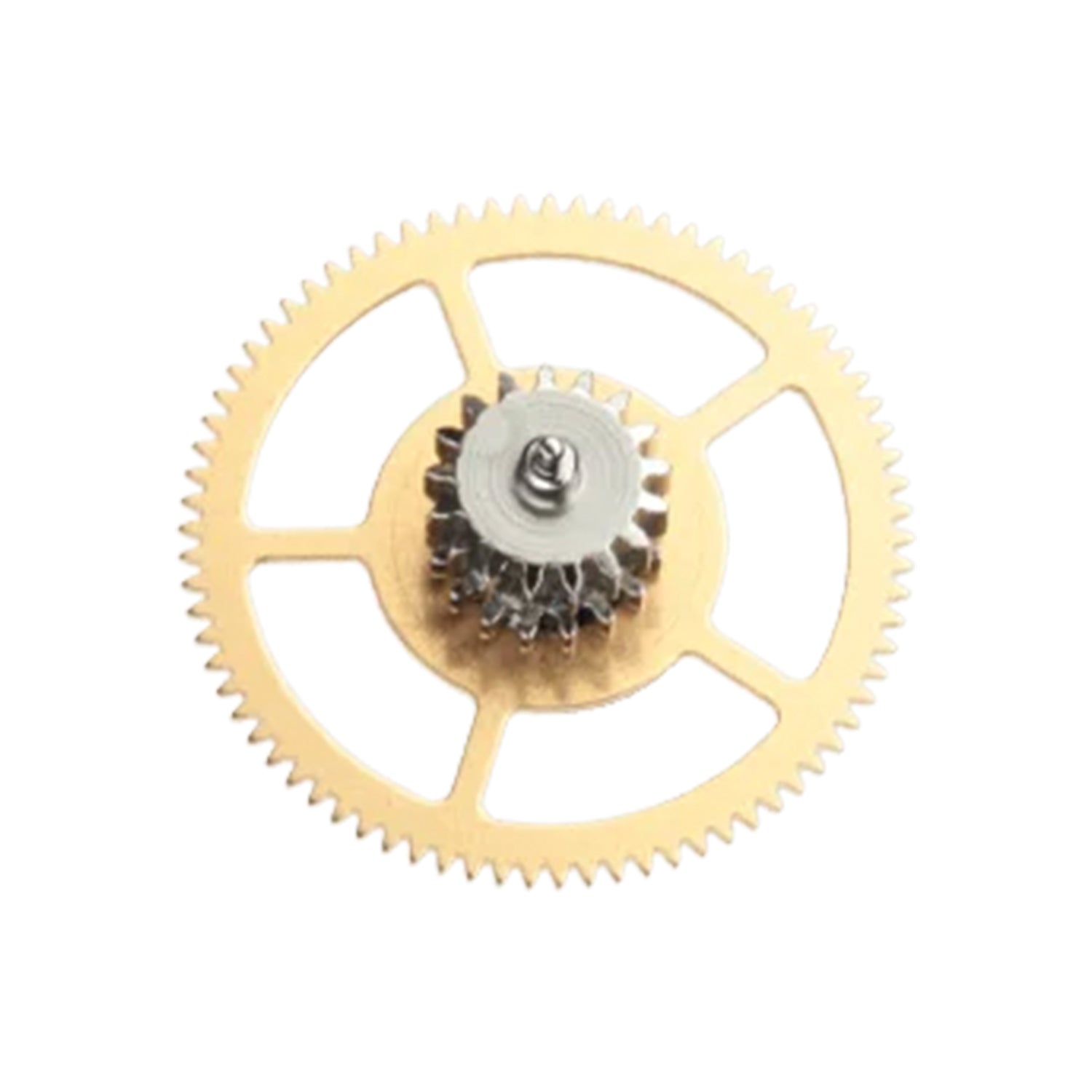

| 203 |
Intermediate wheel 0203.2800 |

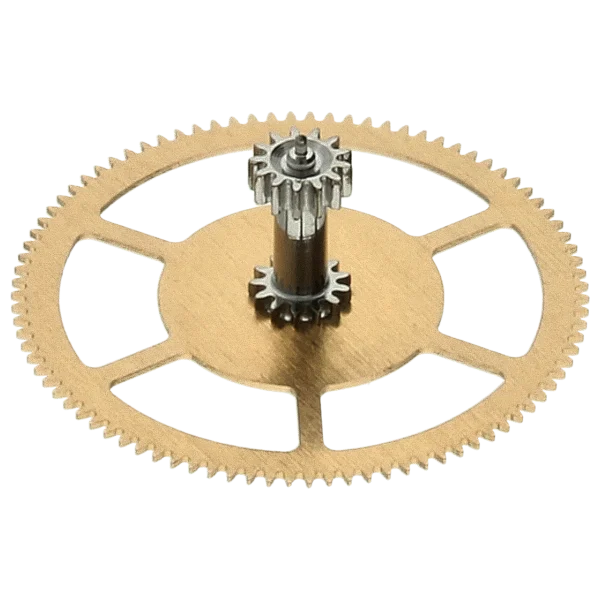

| 210 |
Third Wheel ETA 0210.2800 |

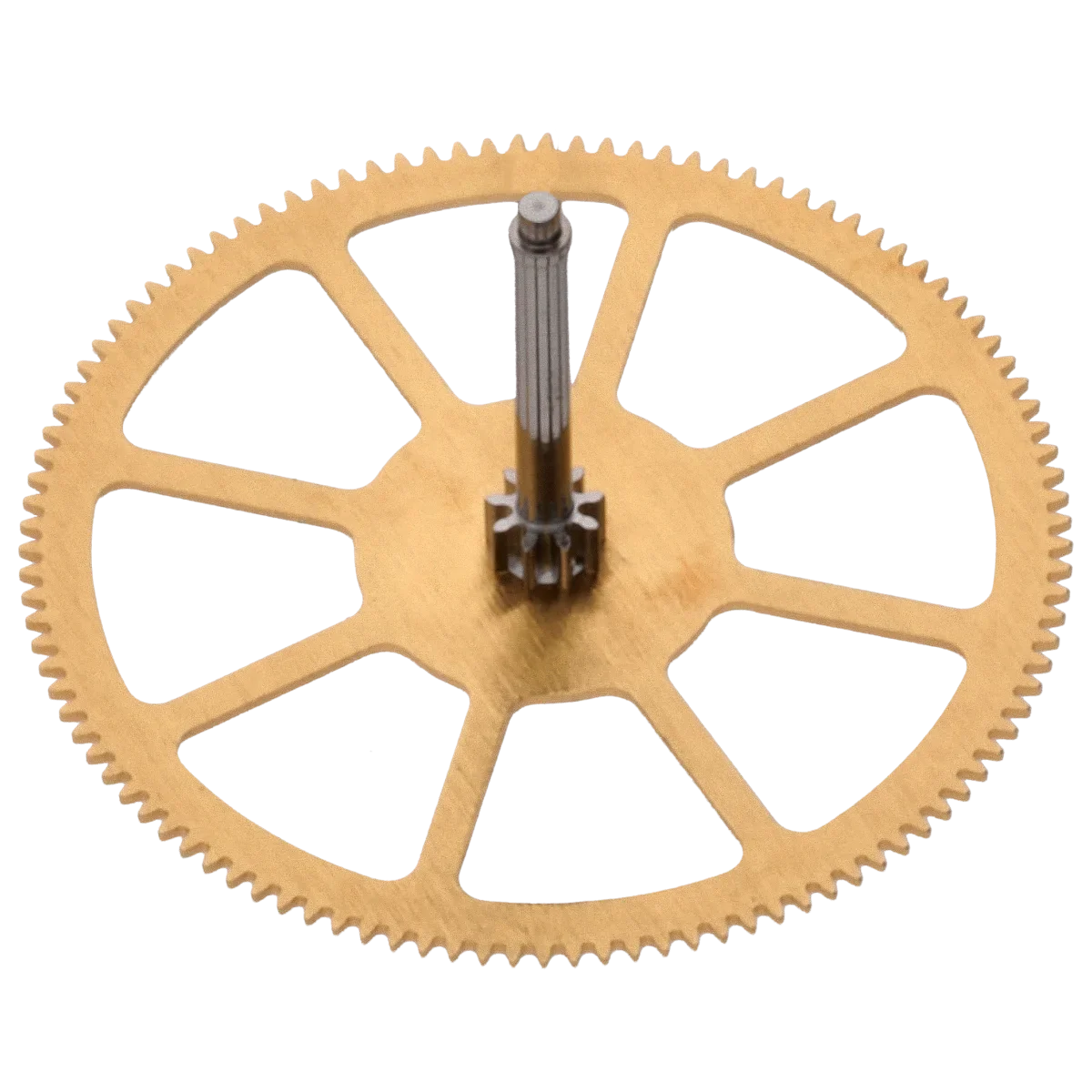

| 227 |
Second wheel |

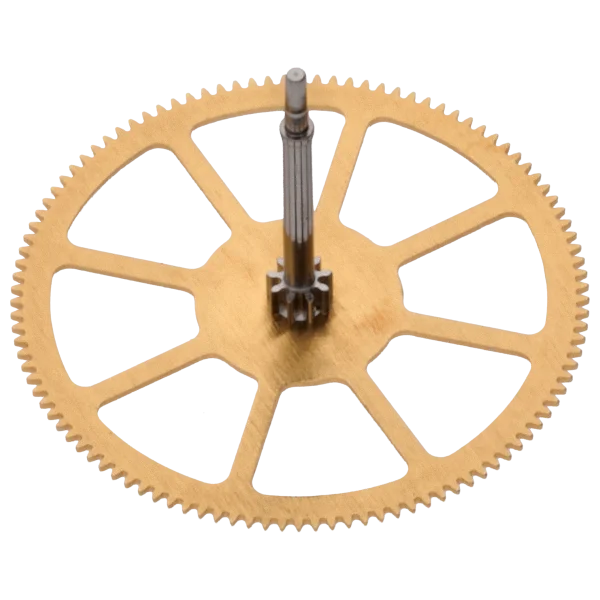

| 227/3 |
Second wheel, without sweep seconds |

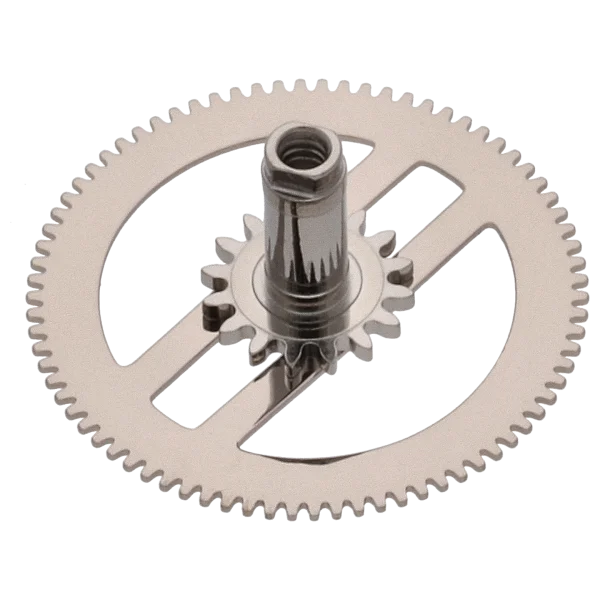

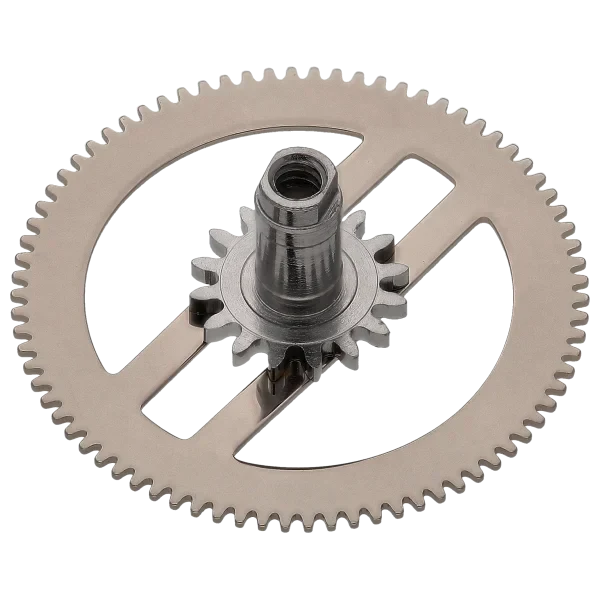

| 242 |
Canon pinion with driver |
| 242/1 |
Canon pinion with driver, without sweep seconds |

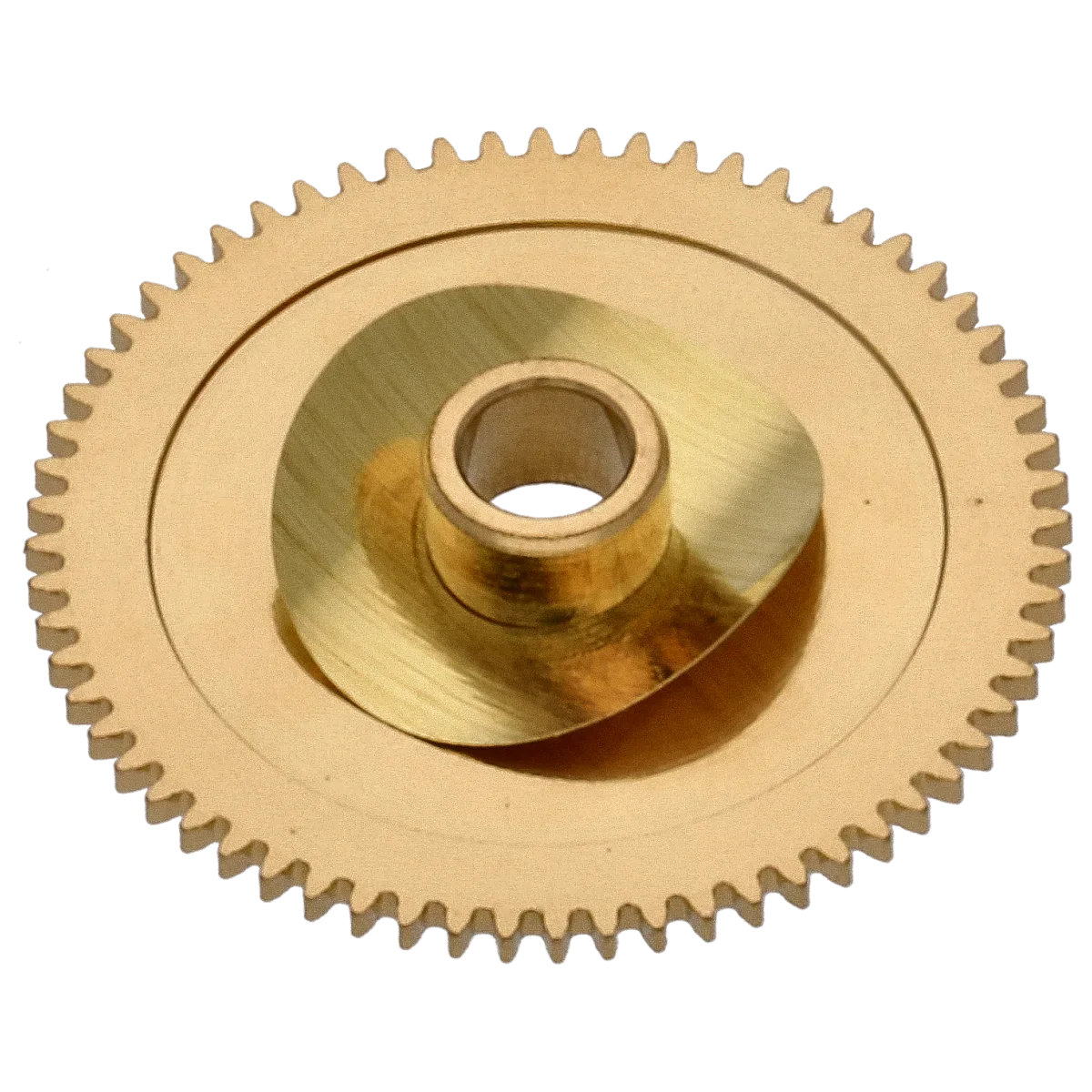

| 255/1 |
Hour wheel, assembled |
| 260 |
Minute wheel |
| 303/2 |
Two-piece regulator, with pointer, for stud support ETACHRON
|
| 303/5 |
Two-piece regulator, with pointer, for stud support ETACHRON and corrector
|
| 307/1 |
Regulator without pointer, for stud support ETACHRON |
| 358 |
Regular corrector |
| 375 |
Stud support, ETACHRON |

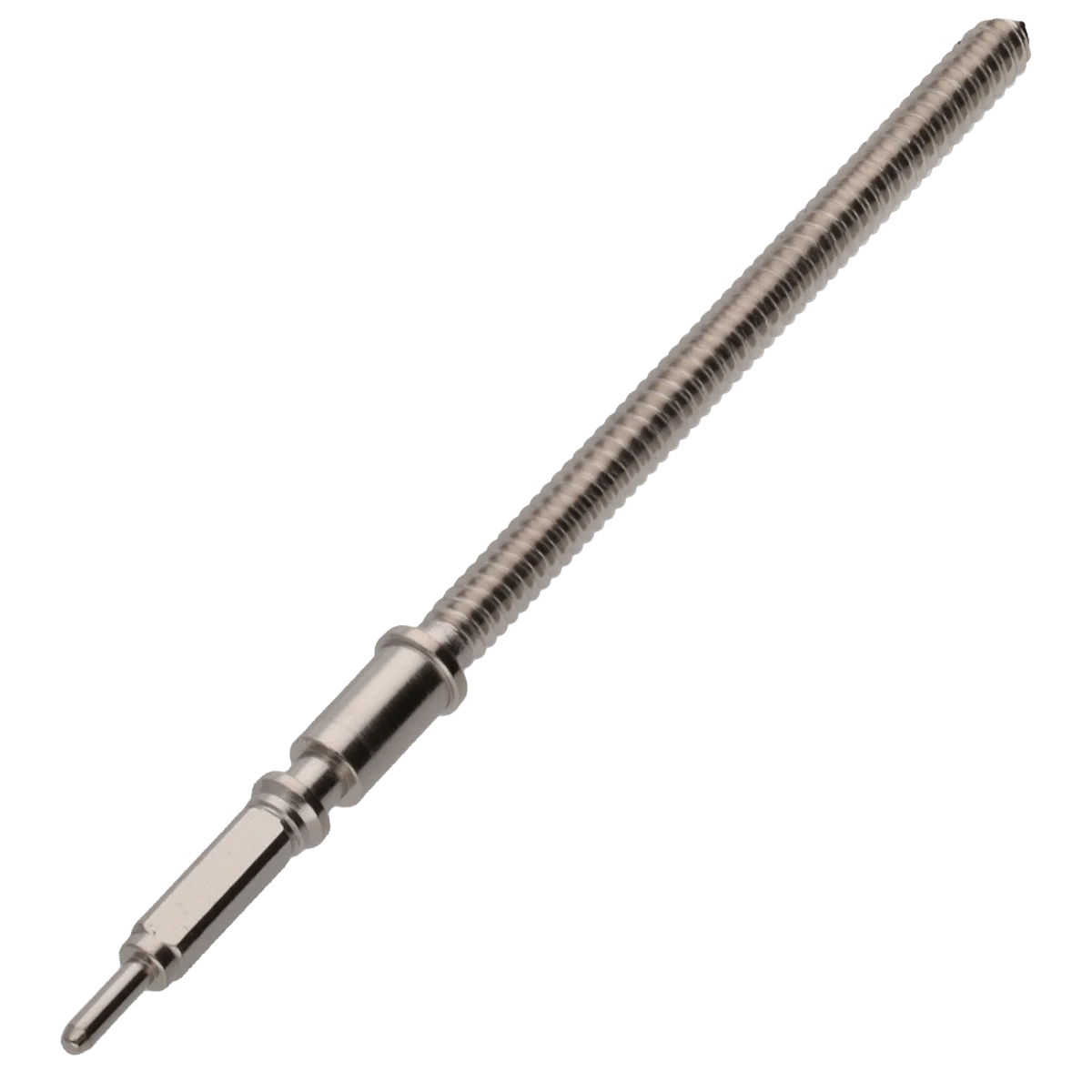

| 401 |
Winding stem, thread diameter 0.90mm |

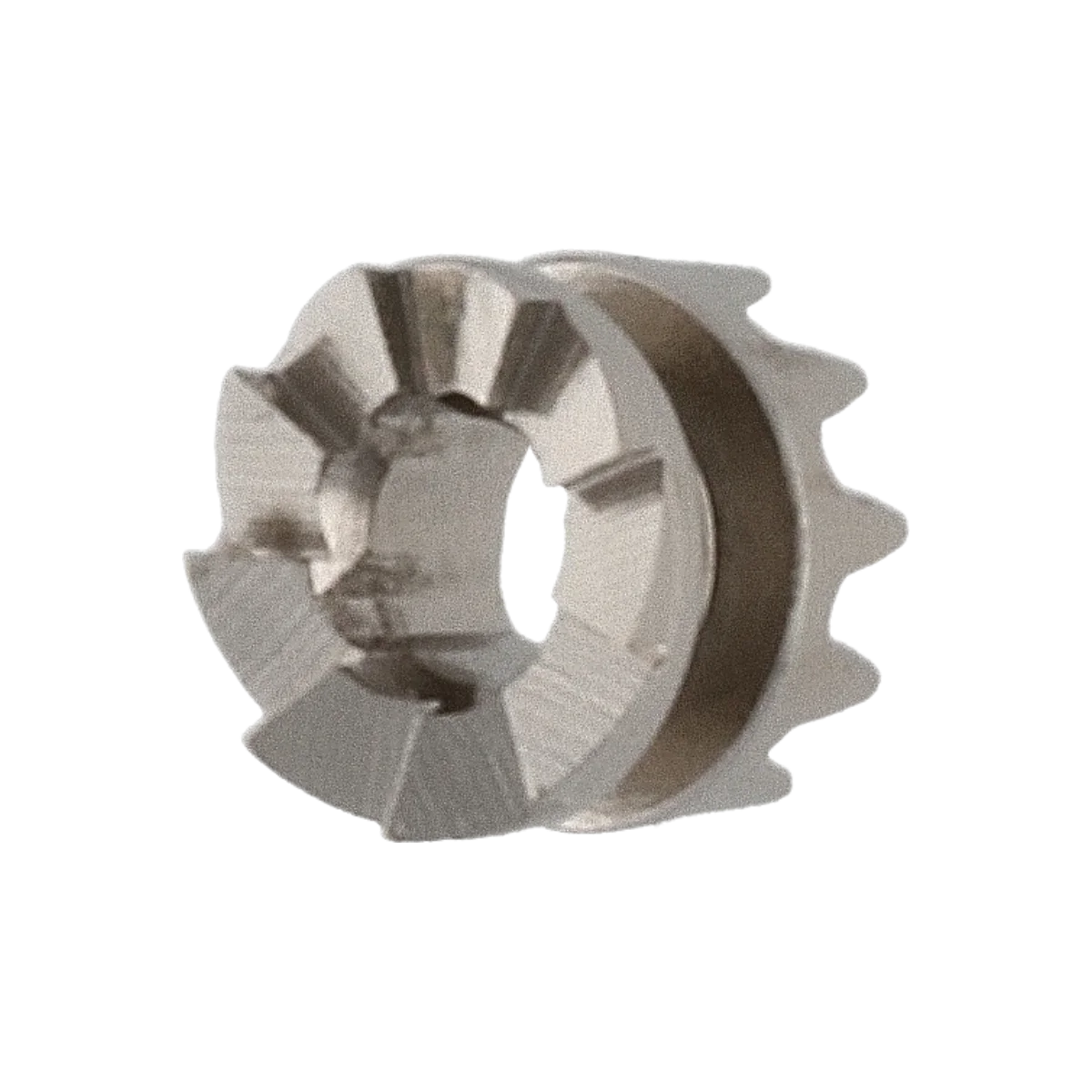

| 407 |
Sliding pinion |

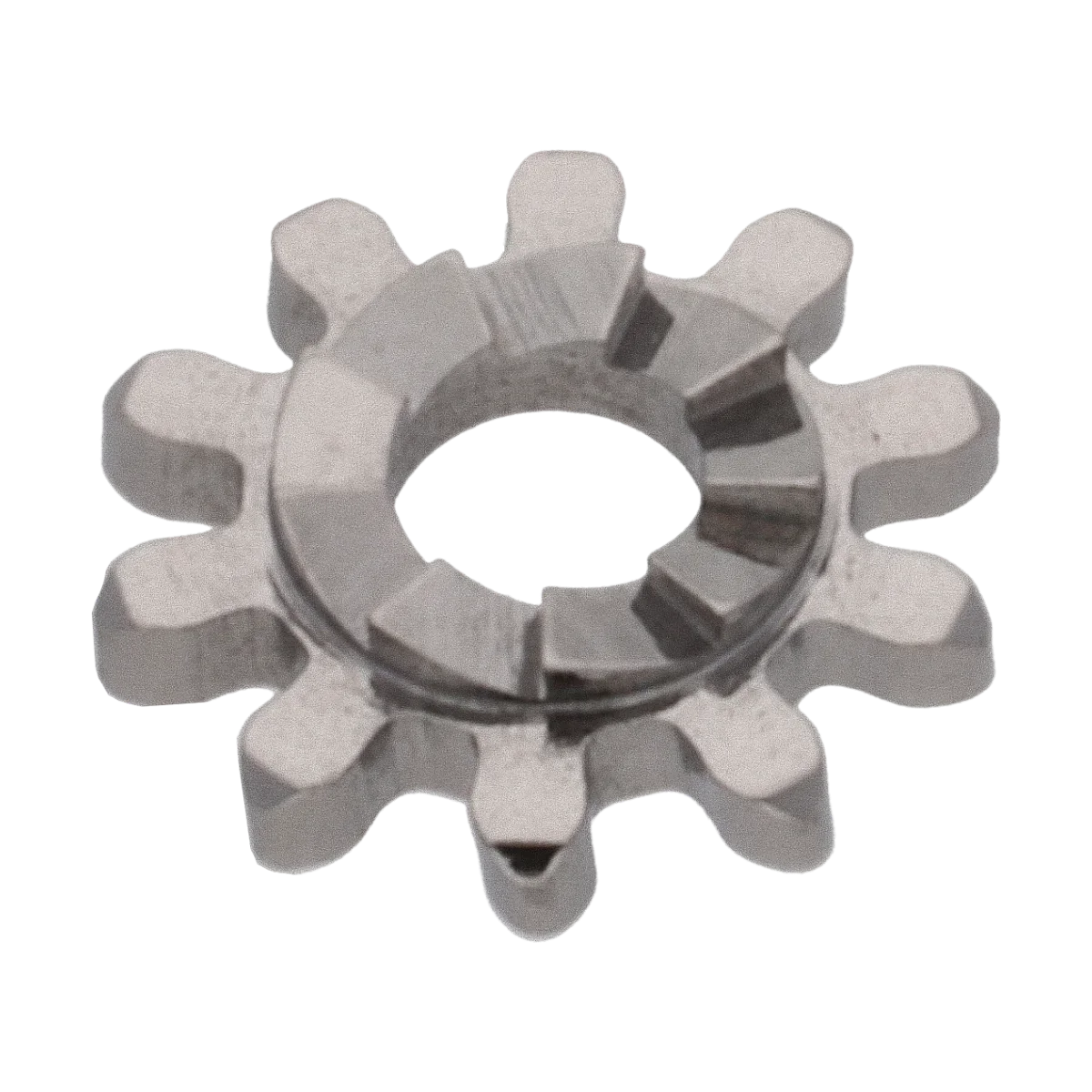

| 410 |
Winding pinion |

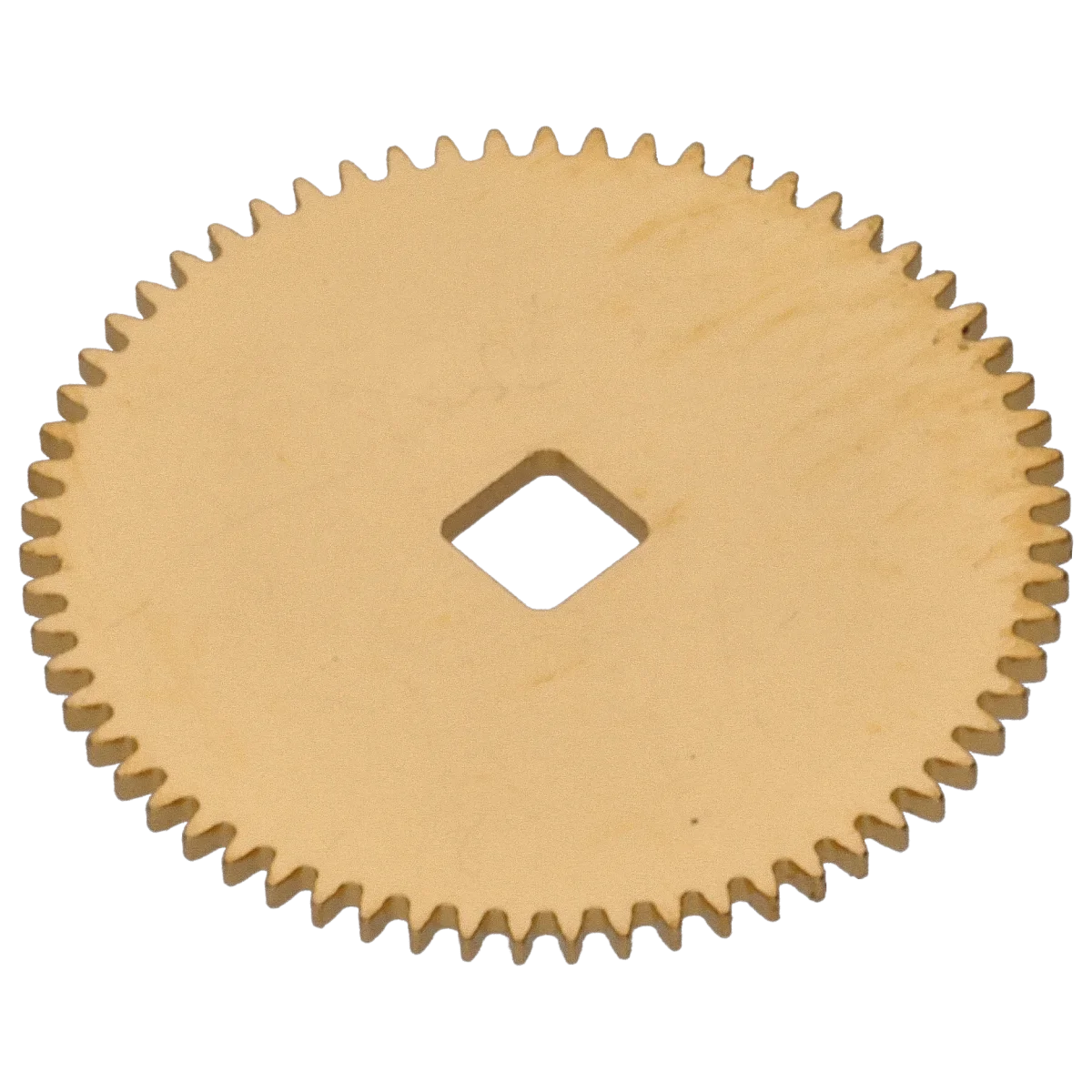

| 415 |
Ratchet wheel 0415.2820 |
| 420 |
Crown wheel |
| 422 |
Crown wheel ring |
| 425 |
Click |
| 430 |
Click spring |

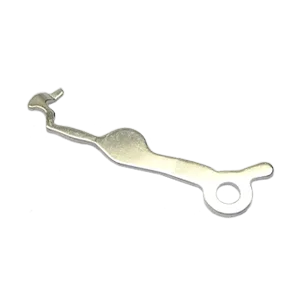

| 435 |
Yoke |

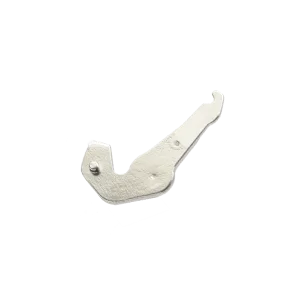

| 443/1 |
Setting lever, assemvled |

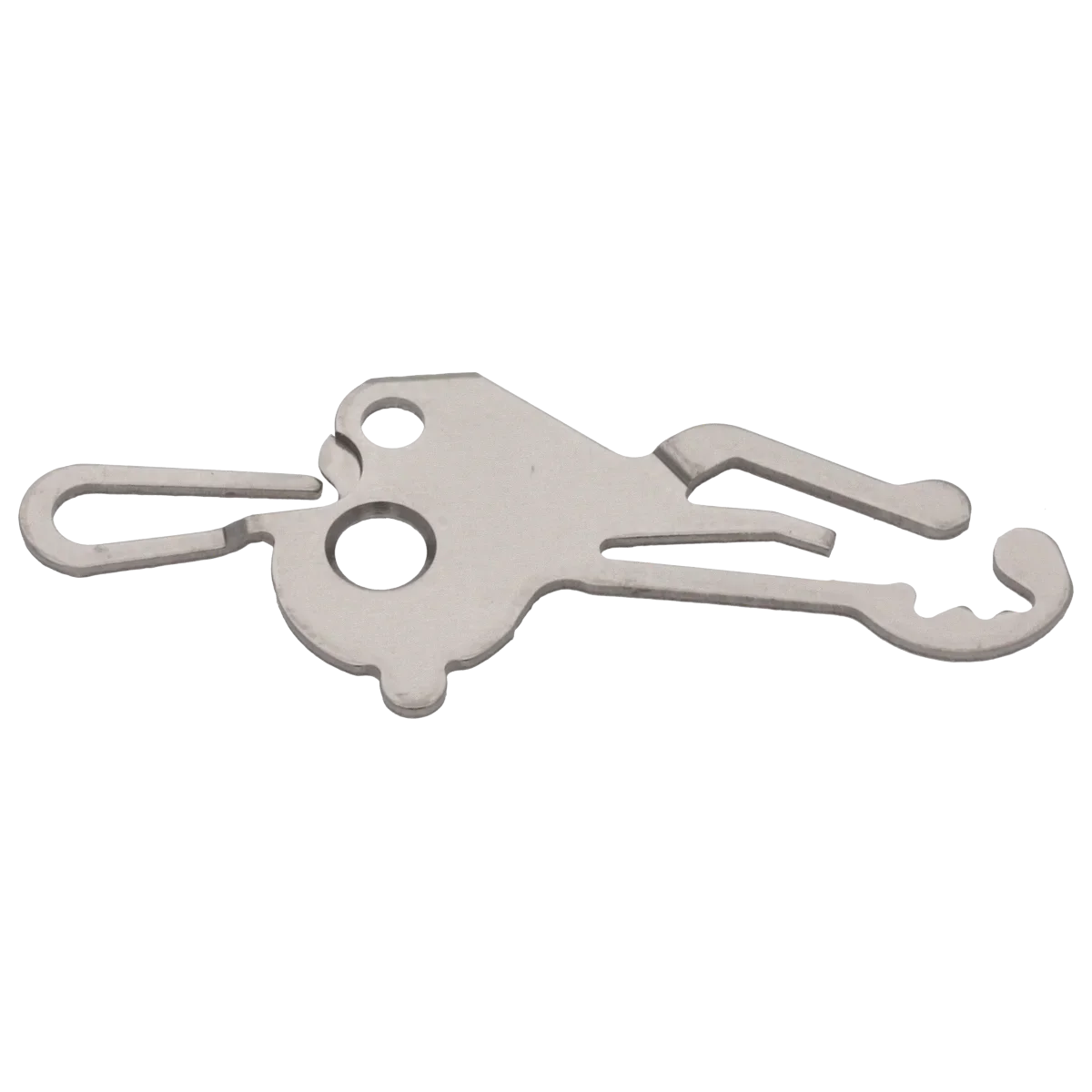

| 445/2 |
Combined setting lever jumper |

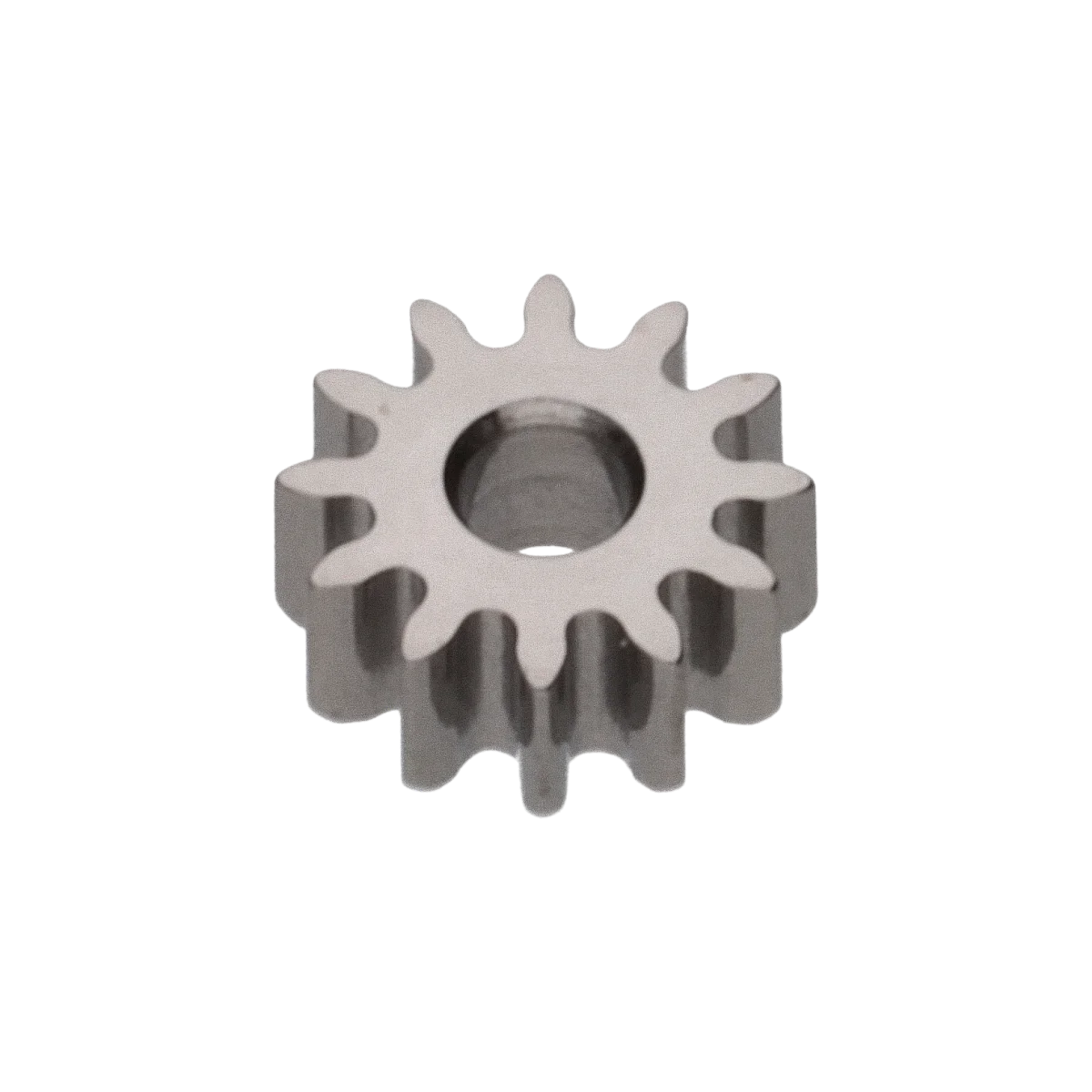

| 450 |
Setting wheel |
| 462 |
Minute train bridge |

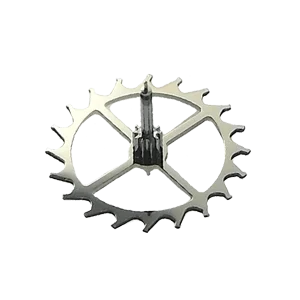

| 705 |
Escape wheel |

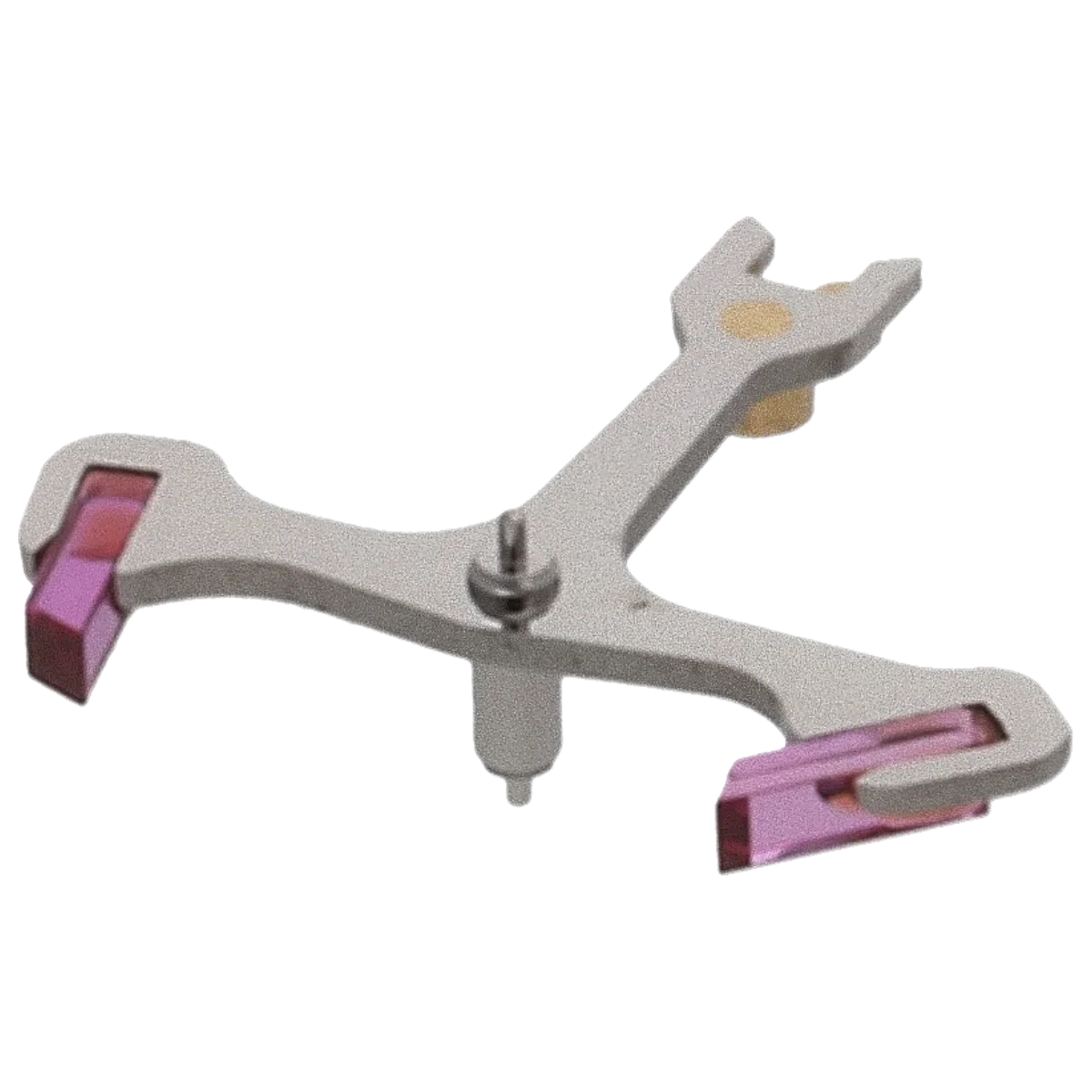

| 710 |
Pallet fork |
| 714 |
Pallet staff |

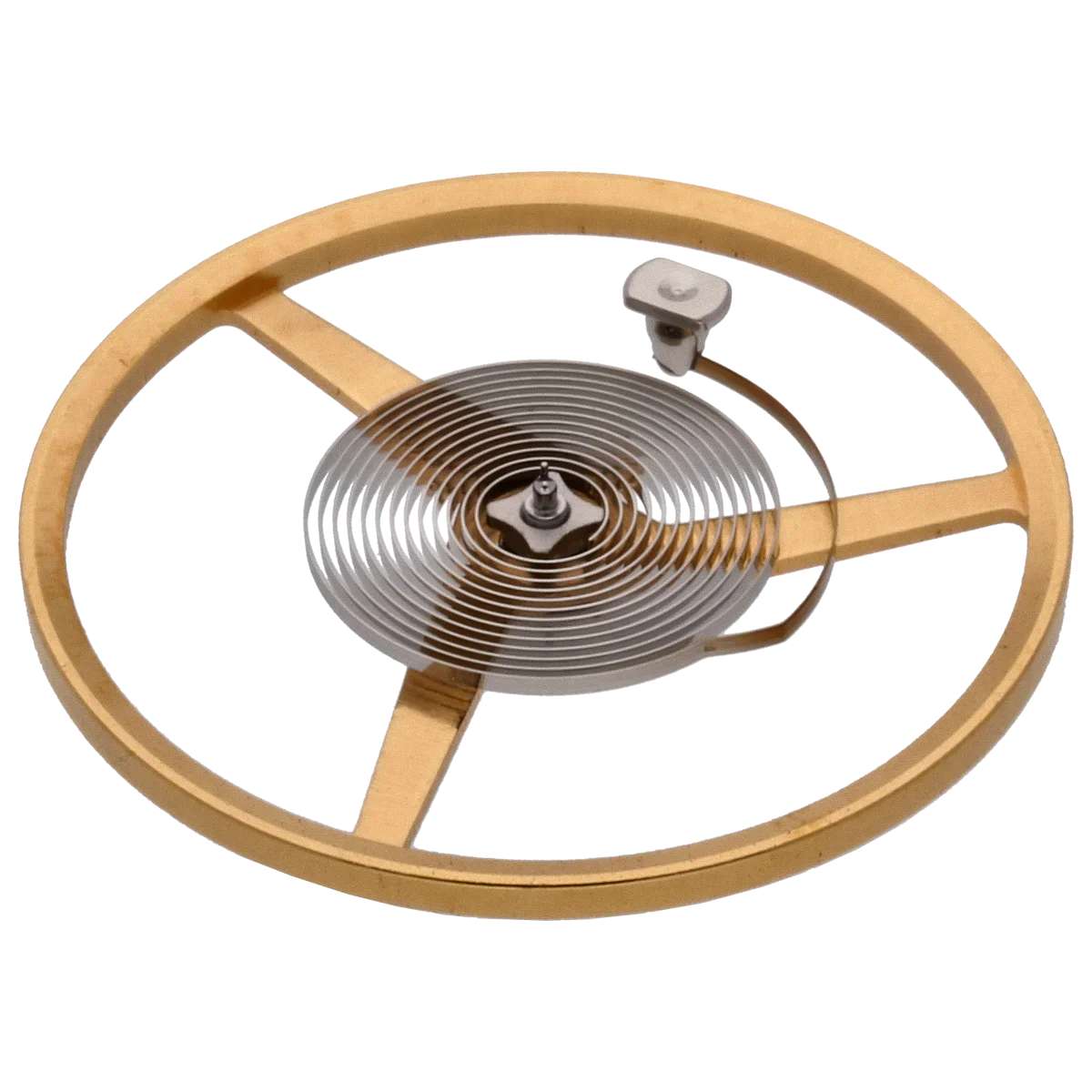

| 721 |
Balance complete w/ Stud ETAchron |

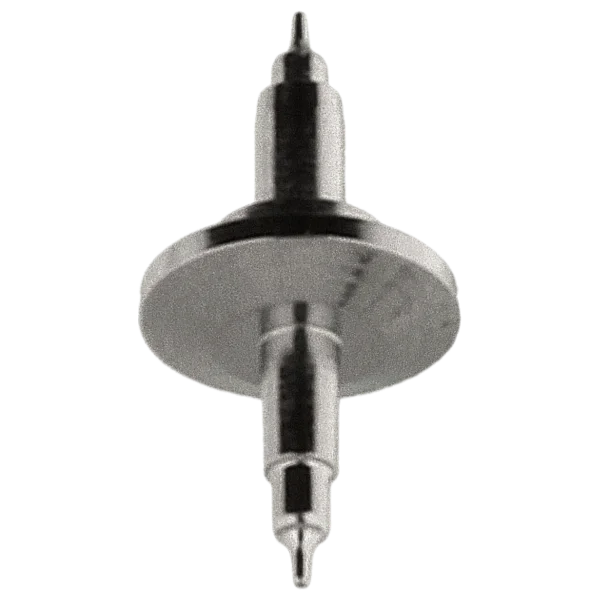

| 728 |
Balance staff, for shock-absorber and annular balance |
| 730 |
Double roller |
| 771 |
Swiss Made Mainspring |
| 1134 |
Automatic device framework |
| 1141 |
Automatic device lower bridge, jewelled |
| 1143/1 |
Oscillating weight, assembled |

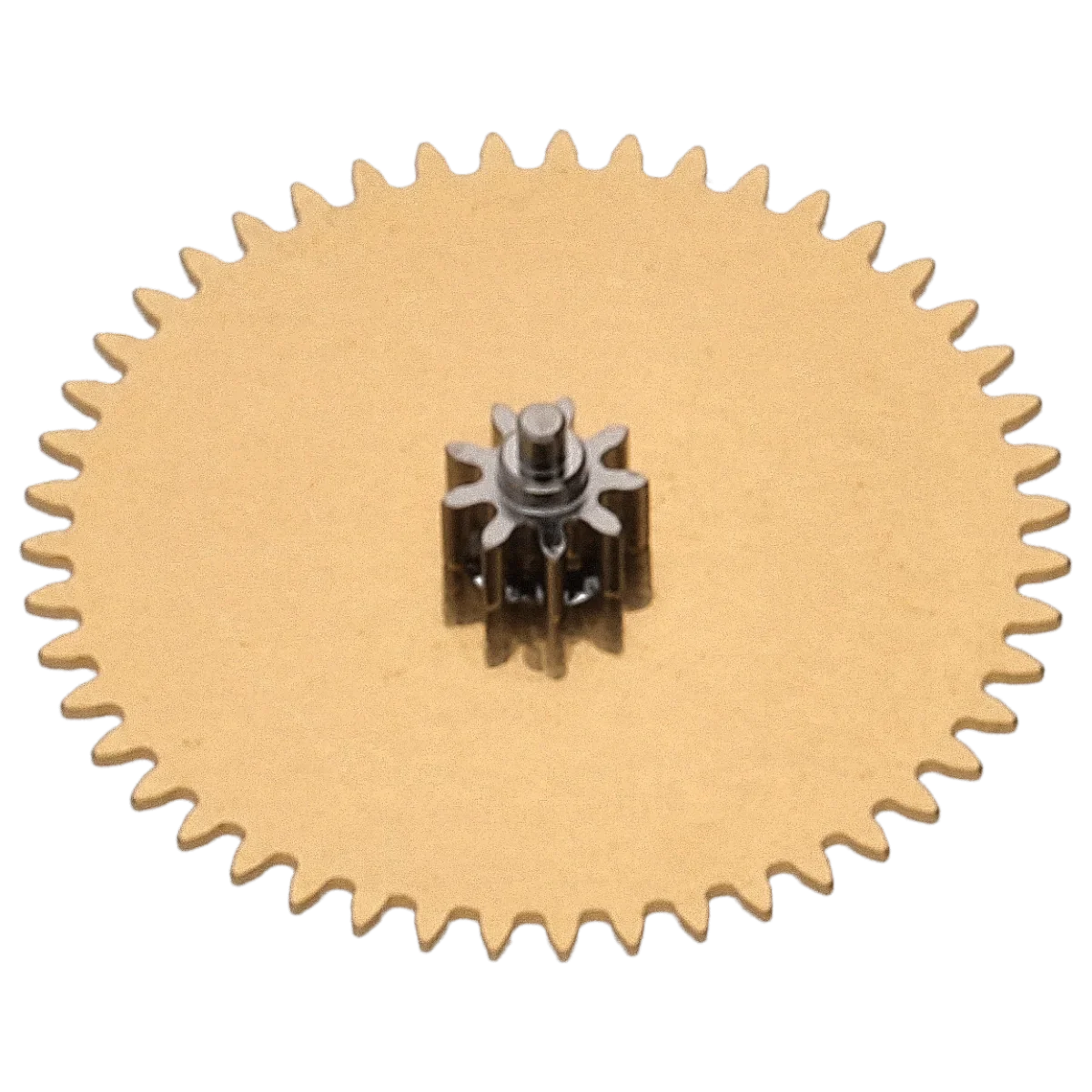

| 1481 |
Reduction wheel 1481.2820 |

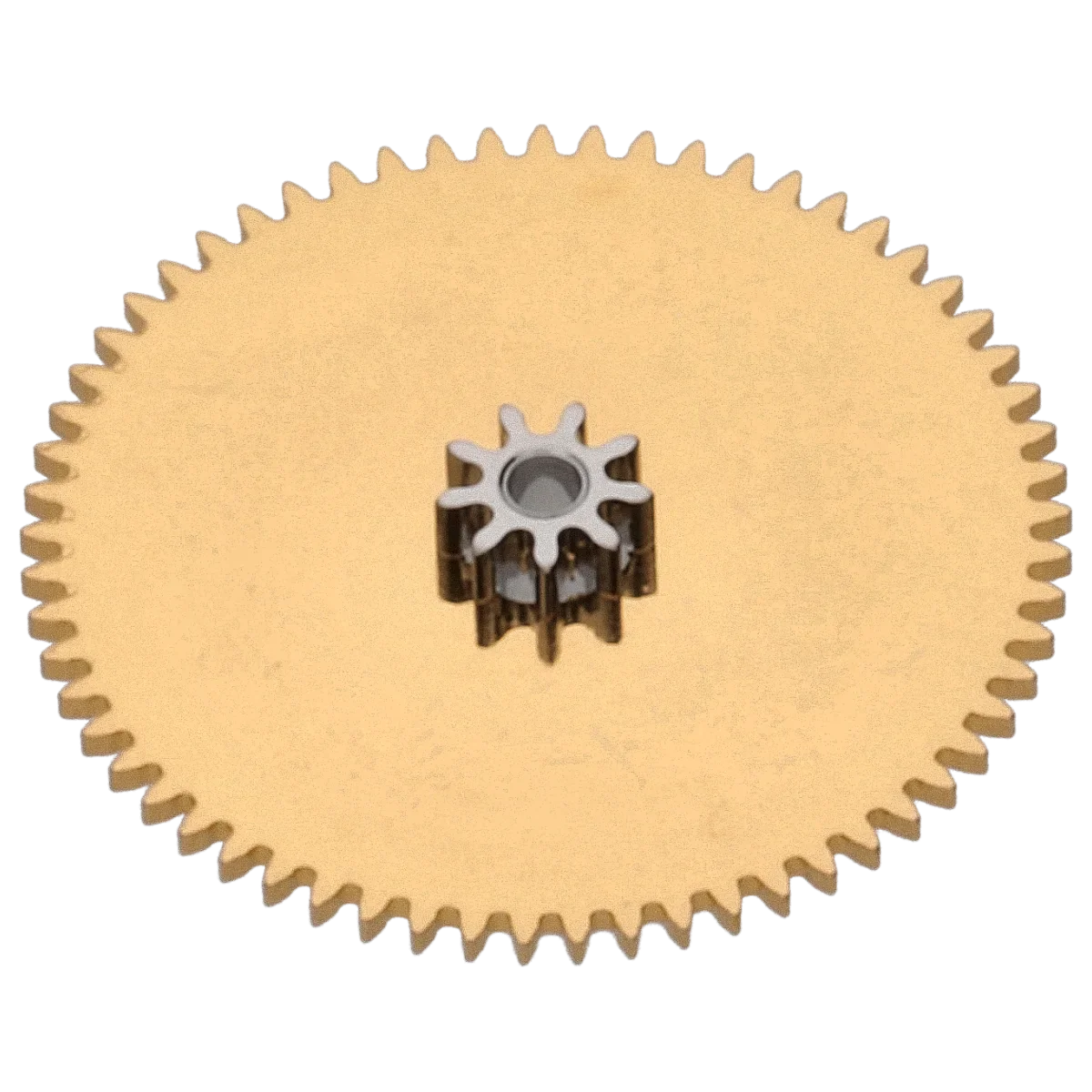

| 1482 |
Ratchet wheel driving wheel 1482.2820 |

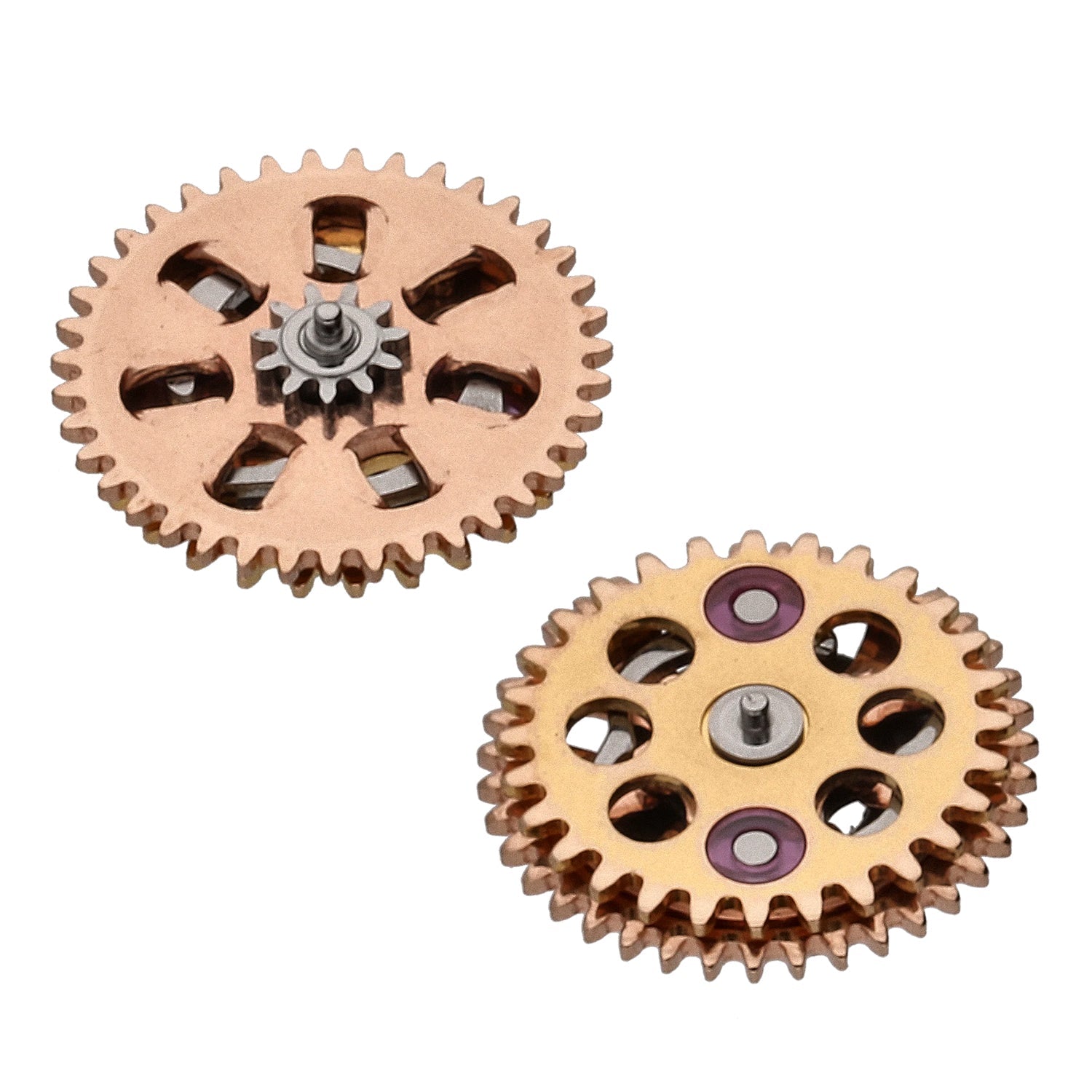

| 1488 |
Reversing wheel 1488.2820 |

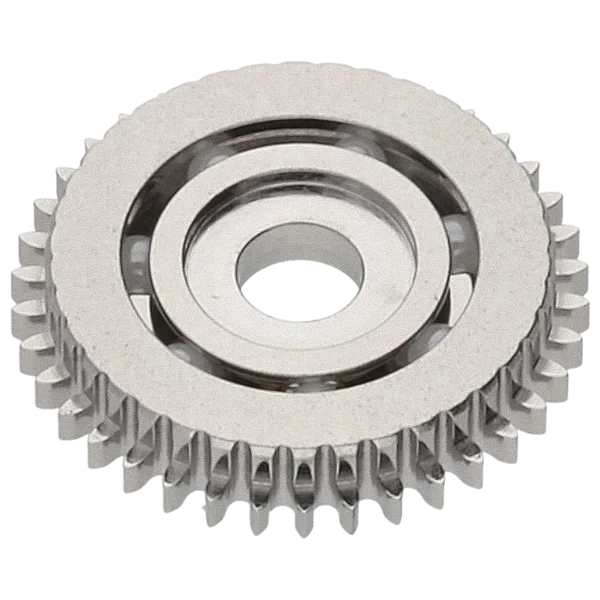

| 1497 |
Ball bearing wheel |

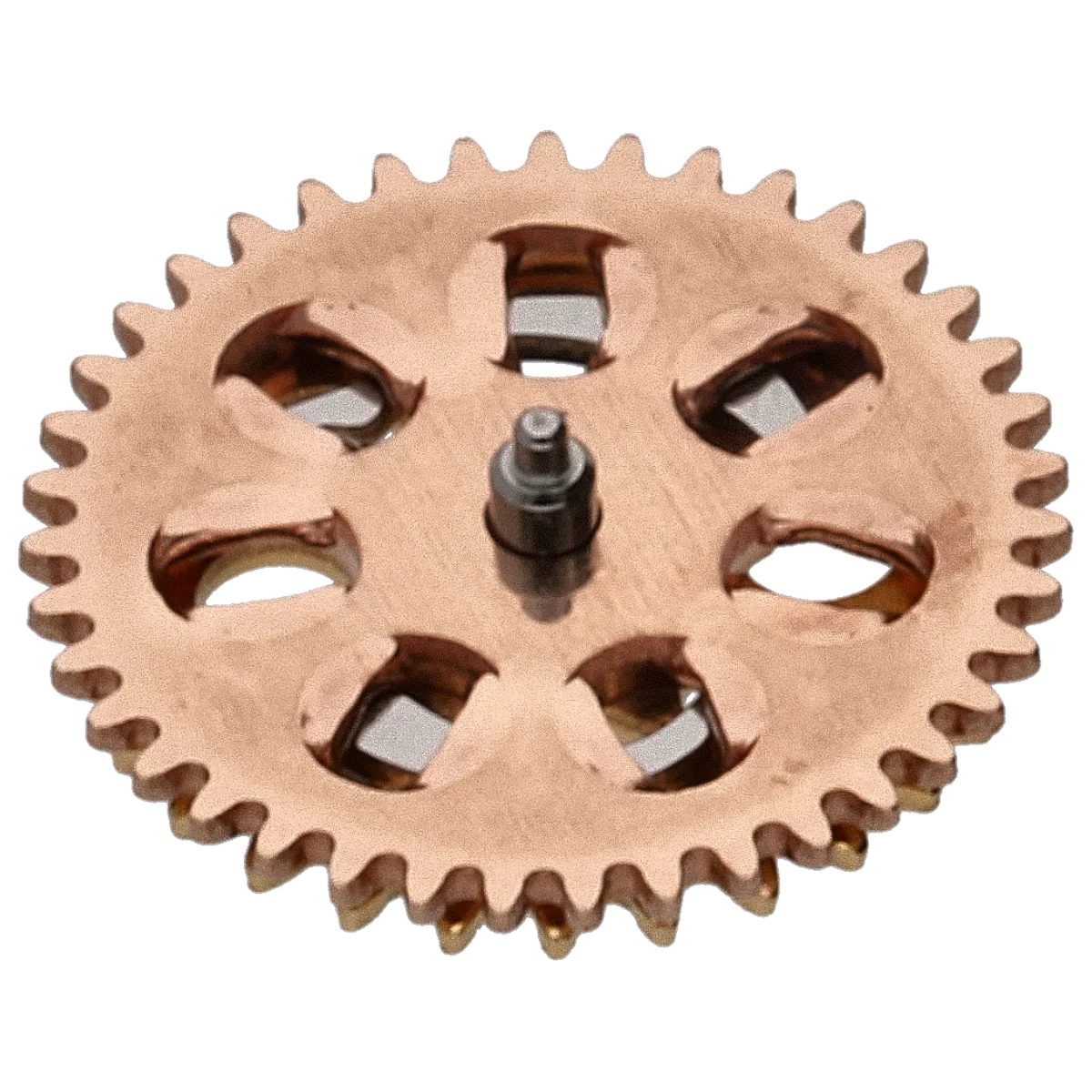

| 1530 |
Auxiliary reversing wheel 1530.2820 |

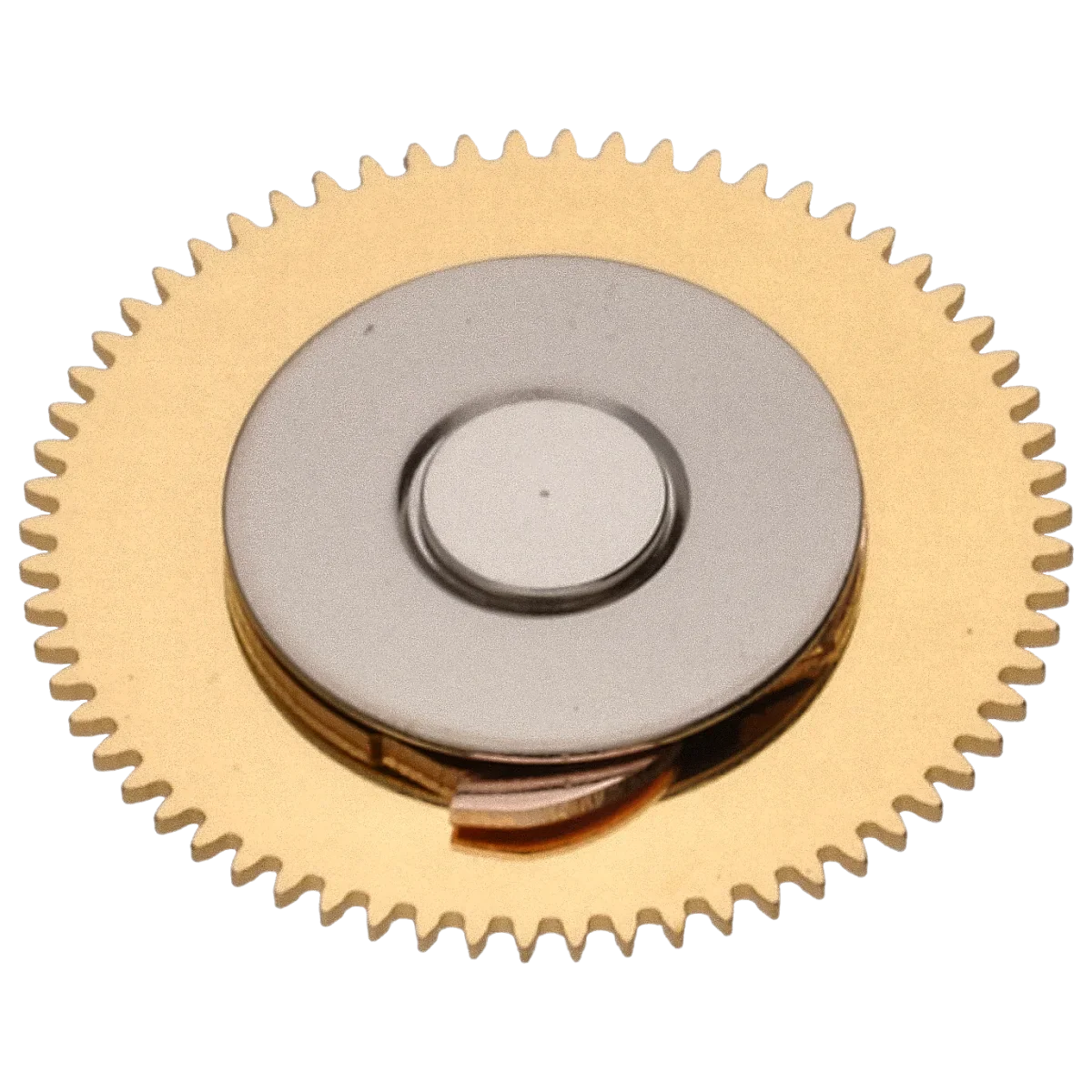

| 2556 |
Date indicator driving wheel |
| 2557/1 |
Date indicator for counter opening at 3 o'clock |
| 2566 |
Date corrector |
| 2570 |
Double corrector operating lever |
| 2576 |
Date jumper |
| 2595/1 |
Date jumper maintaining plate, assembled |
| 3024 |
Jewelled shock-absorber for balance, top, to press in, shouldered
|
| 3025 |
Jewelled shock-absorber for balance, bottom, to press in, cylindrical
|

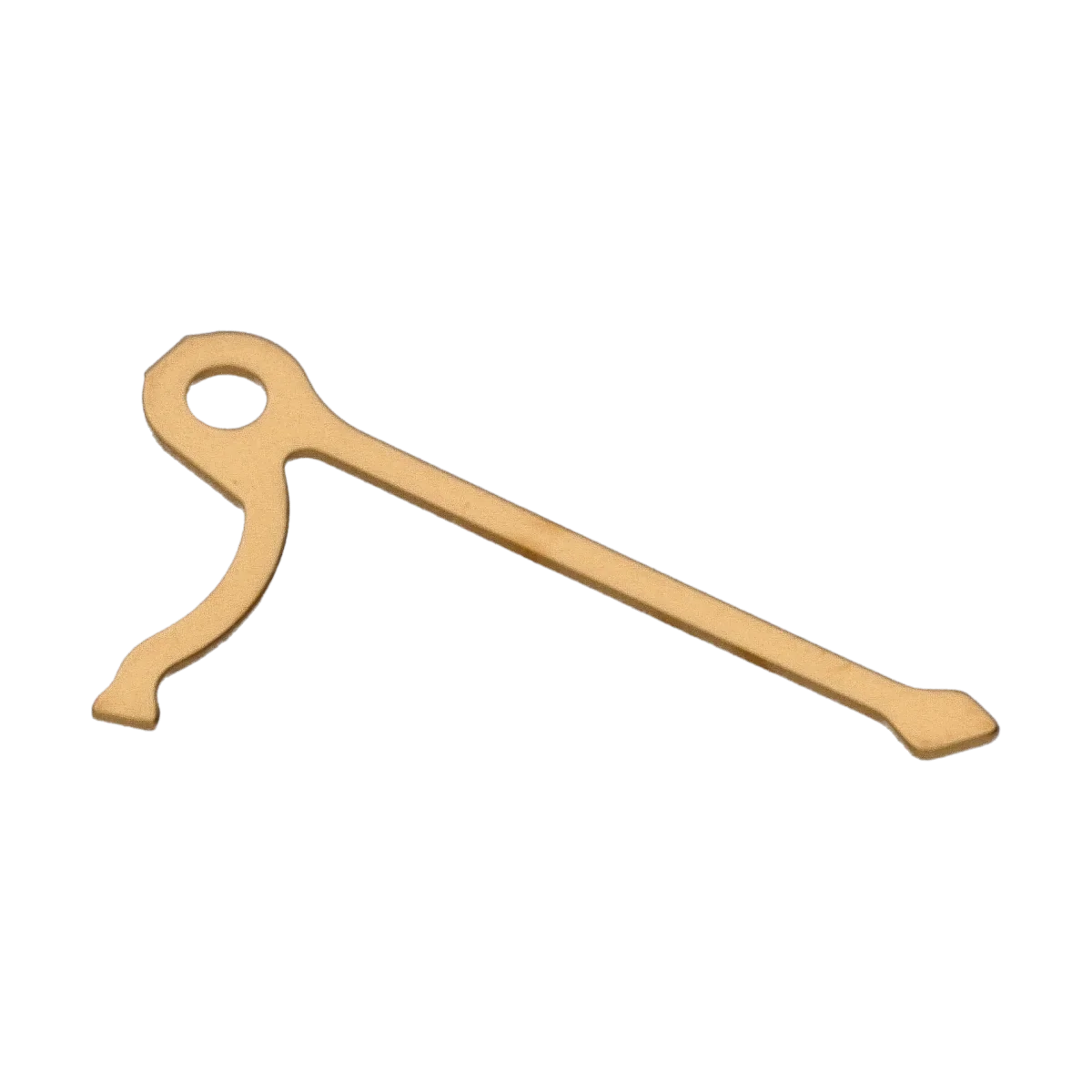

| 9433 |
Stop lever
|
